DRILLS

Our portable drill is engineered to deliver high-torque performance to quickly drill more holes in less time!

The CLIMAX drill is equipped with a 3.0 HP motor and can reliable drill holes up to 1.5 inches (38.1 mm) diameter through tough metals like HY80 steel.

PD3000 PNEUMATIC DRILL

The CLIMAX PD3000 Pneumatic portable drill delivers high-torque performance to quickly drill more holes in less time!

Our drill is equipped with a 3.0 HP motor and can reliably drill holes up to 1.5 inches (38.1 mm) in diameter through tough metals like HY80 steel.

Feed Rate:

.003 or .006 ipr (.076 or .152 mmpr)

Maximum Cutting Depth:

6.5 inches (165.1 mm)

Spindle Size:

Morse Taper #3

Drill Size:

0.69 – 1.5 inches (1.75 – 38.1 mm)

Power Input:

3 HP

POWER

Robust 3.0 Hp Motor:
– Produces 30% more power than similar drills.
– Drills holes up to 1.5 inch (38.1 mm) diameter.
– Faster spindle speed in the cut.
– Higher metal removal rate.
– Reliably drills through tough metals like HY80 steel.

RELIABILITY

High quality gear set is more robust than similar drills, fully supported by two bearings, and will last through years of heavy use. This results in longer run times and a longer life span for the drill.

Integral clutch system – The PD3000 uses a clutch system rather than shear pins which prevents the drill from damaging itself in a stall condition, increases uptime, and extends the life of the drill.

Dedicated chip wiper significantly reduces the amount of chips entering the gearbox which reduces downtime and keeps the drill in action.

Innovative shut-off mechanism protects the drill from damage due to accumulated chips.

Automatic retract system is self-cycling. Mount it, and push go! The depth collar determines the hole depth and automatically triggers a retract cycle. The drill retracts 10 times faster than the drill feed rate.

Manual retract capability allows chip clearance.

Compatible with common air feed drill bushings – the drill can be used with existing drill templates.

SAFETY

Low pressure drop-out prevents unintended re-starts after loss of supplied air pressure.

Compact Design make set-up, transport and storage quick and easy.

Accessories

Operating Manual

PD3000 Operator Manual

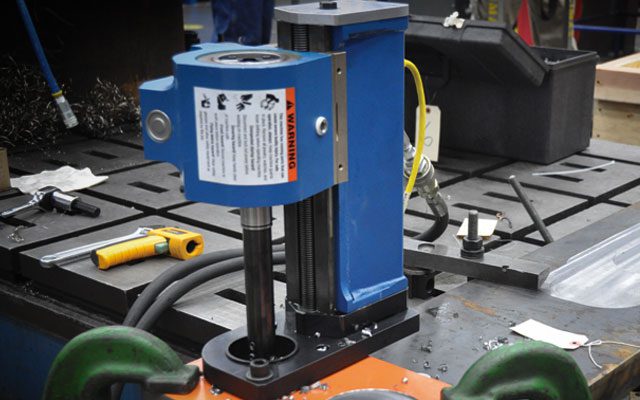

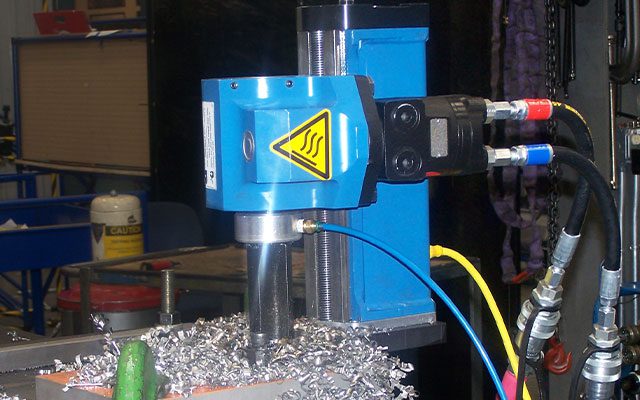

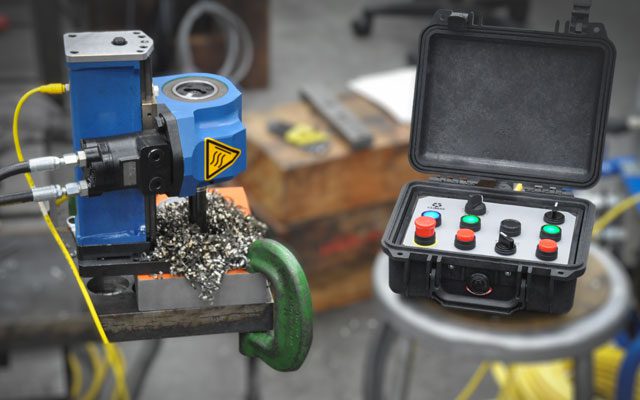

COMPACT DRILL

Our family of customizable Compact Drilling Machines is ideal for machining applications that call for drilling holes up to 2.5 inches (63.5 mm) in a single pass, step drilling, or roto-broaching up to 4.5 inches (114.3 mm) and back-spot facing up to 5.2 inches (132.1 mm). This machine meets tight side clearances, which require holes within 2.5 inches (63.5 mm) of obstruction with overhead clearances as low as 15 inches (381 mm).

Built to Order

Feed Rate:

0.3 – 2.5 inch/minute (7.62 – 63.5 mm/minute)

Maximum Cutting Depth:

6, 7, 10, 12, or 18 in. (154.4, 177.8, 254, 304.8, or 457.2 mm)

Spindle Size:

Morse taper #4 & #5, #40 NMTB adapters available

Drill Size:

Up to 3.25 in. (82.6 mm) diameter

Power Input:

Hydraulic 10 HP

Our family of customizable Compact Drilling Machines is ideal for machining applications that call for drilling holes up to 2.5 inches (63.5 mm) in a single pass, step drilling, or roto-broaching up to 4.5 inches (114.3 mm) and back-spot facing up to 5.2 inches (132.1 mm). This machine meets tight side clearances, which require holes within 2.5 inches (63.5 mm) of obstruction with overhead clearances as low as 15 inches (381 mm).

When there is no adequate solution, operators are forced to use an improvised corner drill for their application. This results in increased labor to do the job (sometimes 2-3 more labor hours) and can also present several issues, including:

  • Finding a way to restrain the drill torque safely
  • Welding-in supports to hold the drill vertically during the drilling operation
  • Needing to use a hex nut, screw, and wrench to feed the drill through the hole
  • Needing to step drill even holes less than 2.5 inches (63.5 mm) in diameter while working within tight spaces
  • Addressing safety issues as a result of an increased likelihood of operator injury due to poor working ergonomics

 The Compact Drilling Machine gives the operator a safer, more ergonomic solution for their drilling application while improving their time on the job by 30% to 60%.

Literature

Compact Drill

Accessories

Operating Manual
