H&S TOOL offers 4 models of portable Pipe Bevelers for fabrication shop and on-site field use. Each model has a large working range with the power and accuracy to meet budget and schedule demands.
PB6 – PB12 POWER BEVELER

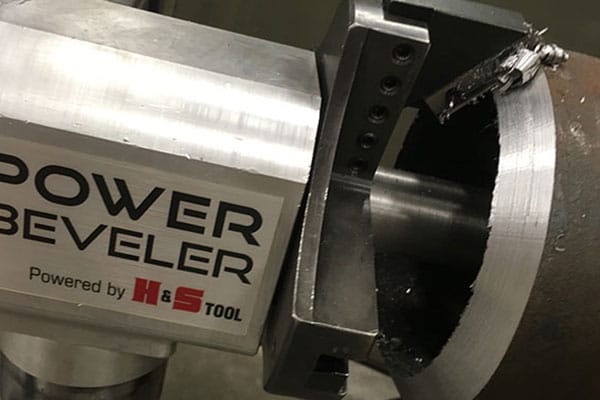

The PB6 – PB12 POWER BEVELER pipe bevelers are a combination of power, versatility, and reliability in a compact package. Designed to perform on-site machining with speed and accuracy, delivering optimal speed and torque combination to make short work of your pipe prep projects.
| Model | Working Range | Radial Tool Clearance | Travel | Power | Speed |
|---|---|---|---|---|---|
| PB6 | 1.7 in. ID – 7 in. OD (43.2 ID – 177.8 OD mm) | 7 in. (177.8 mm) | 3.0 in. (76.2 mm) | Pneumatic (3.0 HP / 2.2 kW), Electric (2.5 HP / 1.9 kW), or Hydraulic (4.9 HP / 3.4 kW) | 0 – 40 RPM, 0 – 52 RPM, 0 – 40 RPM |
| PB8 | 2 in. ID – 8.625 in. OD (50.8 ID – 219.1 OD mm) | 9 in. (228.6 mm) | 3.5 in. (88.9 mm) | Pneumatic (3.0 HP / 2.2 kW), Electric (2.5 HP / 1.9 kW), or Hydraulic (5.36 HP / 4.0 kW) | 0 – 22 RPM, 0 – 37 RPM, 0 – 40 RPM |
| PB12 | 3 in. ID – 14 in. OD (76.2 ID – 355.6 OD mm) | 14 in. (355.6 mm) | 4.5 in. (114.3 mm) | Pneumatic (3.0 HP / 2.2 kW), Electric (2.5 HP / 1.9 kW), or Hydraulic (5.36 HP / 4.0 kW) | 0 – 18 RPM, 0 – 32 RPM, 0 – 40 RPM |
POWERFUL PERFORMANCE
3 Hp pneumatic motor with heavy duty gearing delivers the speed and torque to quickly cut heavy wall pipes of carbon, chrome moly, or stainless steel materials.
Torque-free operation locks the machine into the pipe allowing the operator to easily run the machine without requiring additional torque restraint.
Heavy-duty tapered roller bearings for very rigid and smooth operation.
VERSATILITY
Select from 3 models sized to bevel 6, 8 and 12 inches (152.4, 203.2 or 304.8 mm) pipe.
Quick change mandrel allows the mandrel to be quickly removed from the power unit, reducing the weight.
Universal tool holder is designed to accept a variety of tooling, enabling you to perform up to three operations at the same time.
Variety of tooling options allow you to bevel, counter bore, and perform J-prep with high-speed steel or indexable carbide tooling.
Three motor options to choose from allowing you the flexibility to power the machine anywhere – pneumatic, hydraulic, and electric.
RELIABILITY
Self-centering 3 leg wedge system centers the tool in the pipe for accurate machining.
Lightweight aluminum alloy components for easy handling.
Easy grip feed handle with precision index ring makes feeding the tool to a required depth easy and accurate.
Integrated wedge system allows quick change of leg extensions.
Standard set screws allow for easy installation of the tool bits – no reaching around the tool to release the blade.
Corrosion resistant finish applied to external components prevents machine weathering.
CE Certified for use in the European Union or any country where CE certification is required.
Literature
Accessories

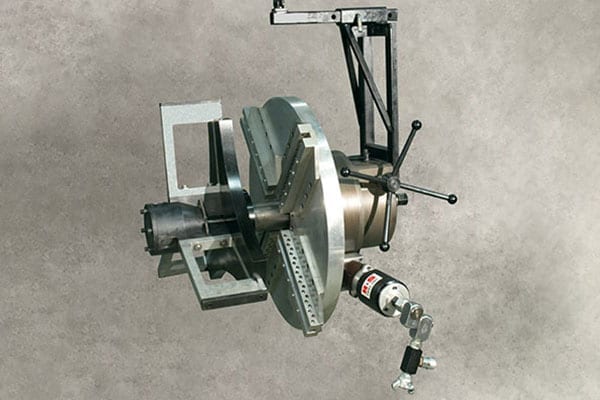

PB30 POWER BEVELER (Model MFT-HD)
The PB30 POWER BEVELER (Model MFT-HD) is a powerful and reliable pipe machining and beveling tool. Heavy duty gearing combines with variable speed control for smooth, accurate cutting of different pipe sizes, wall thicknesses, and materials.
Working Range:
8 in. ID – 30 in. OD (203.2 ID – 762.0 OD mm)
Radial Tool Clearance:
24 in. (609.6 mm) & 30 in. (762 mm)
Travel:
4.5 in. (114.3 mm)
Power Option:
Pneumatic (3.5 HP / 2.6 kW) or Hydraulic (10.72 HP / 8.0 kW)
Speed:
0 – 3.5 RPM, 0 – 12 RPM
Reliable Performance
The PB30 POWER BEVELER (Model MFT-HD) is a powerful and reliable ID mount end-prep machining tool that will save you time and money for pipes from 8 inches ID to 30 inch OD (203.2 – 762 mm).
The PB30 POWER BEVELER is compact and solidly built to withstand the abuse of production machining day after day, week after week.
Exclusive H&S TOOL gearing combined with variable speed control produces the optimum speed for smooth, accurate cutting of different pipe sizes, wall thicknesses, and materials.
Comes standard with a powerful 3.5 HP (2.6 kW) pneumatic motor. Hydraulic power is also an available option.
Versatile
A full complement of standard and custom tooling is available to perform a wide variety of machining operations.
The machine can be ordered with a 24 inch (609.6 mm) or a 30 inch (762.0 mm) tool plate.
Packaging includes lifting equipment for both horizontal and vertical installation in the pipe.
Accurate, Safe and Productive
The H&S TOOL internal locking pad system produces torque-free operation, enhancing operator safety and productivity. The clamp also automatically centers the tool in the pipe for accurate machining.
The locking system has three base plates to cover the full range of the machine. Aluminum extension plates have steel caps for maximum grip and durability.
Literature
Accessories
