ID MOUNT FLANGE FACERS

Simple, Safe, Accurate Flange Facing

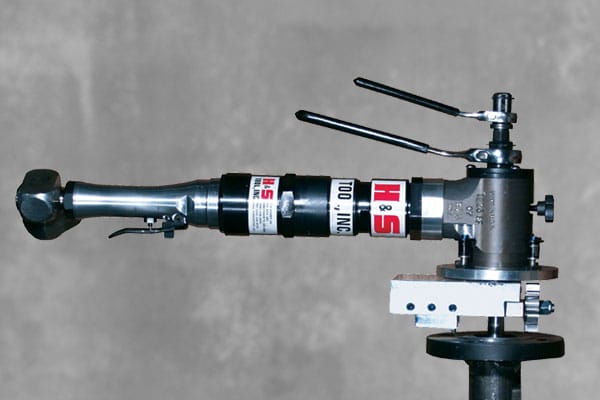

The H&S TOOL Model BF Flange Facer is a versatile flange facer designed for flanges ranging from  0.75 inch ID to 4.12 inch OD (19.1 to 104.6 mm). The BF is a reliable pipe machine tool with a premium flange facing conversion kit. Powered by reliable pneumatic or electric motors to accurately meet your job site or shop requirements.

The Model BF is portable, making it ideal for use in the field. Setup and operation is easily handled by a single worker.

Kits include everything necessary to convert your beveling tool with illustrated instructions.

Standard wedge plates can be used for internal locking or precision elbow mandrels are available. The mandrels are designed to mount in short-radius elbows.

Simple, Safe, Accurate Flange Facing

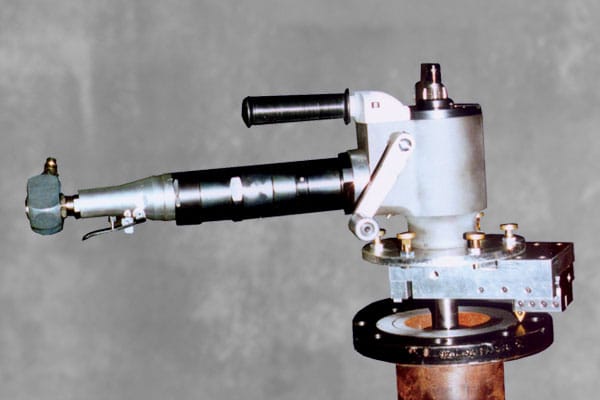

The H&S TOOL Model MSF Flange Facer is a versatile flange facer designed for flanges ranging from 1.25 inches ID to 6.19 inches OD (31.8 to 157.2 mm). The MSF is a reliable pipe machine tool with a premium flange facing conversion kit. Powered by reliable pneumatic or electric motors to accurately meet your job site or shop requirements.

The Model MSF is portable, making it ideal for use in the field. Setup and operation is easily handled by a single worker.

Kits include everything necessary to convert your beveling tool with illustrated instructions.

Standard wedge plates can be used for internal locking or precision elbow mandrels are available. The mandrels are designed to mount in short-radius elbows.

The minimum straight depth to mount the model MSF is 0.5000 inch (12.7 mm). Centering and squaring the device makes accurate machining of gasket surfaces and/or bolt patterns simple and safe.

The minimum straight depth to mount the model MSF is 0.5 inch (12.7 mm).

Centering and squaring devices make accurate machining of gasket surfaces and/or bolt patterns simple and safe.

Simple, Safe, Accurate Flange Facing

The H&S TOOL Model MTF Flange Facer is a versatile flange facer designed for flanges ranging from 3.25 inch ID to 10.63 inch OD (82.6 – 270 mm). The MTF is a reliable pipe machine tool with a premium flange facing conversion kit. Powered by reliable pneumatic or electric motors to accurately meet your job site or shop requirements.

The Model MTF is portable, making it ideal for use in the field. Setup and operation are easily handled by a single worker.

Kits include everything necessary to convert your beveling tool with illustrated instructions.

Standard wedge plates can be used for internal locking or precision elbow mandrels are available. The mandrels are designed to mount in short-radius elbows.

The minimum straight depth to mount the model MTF is 1 inch (25.4 mm).

Centering and squaring devices make accurate machining of gasket surfaces and/or bolt patterns simple and safe.

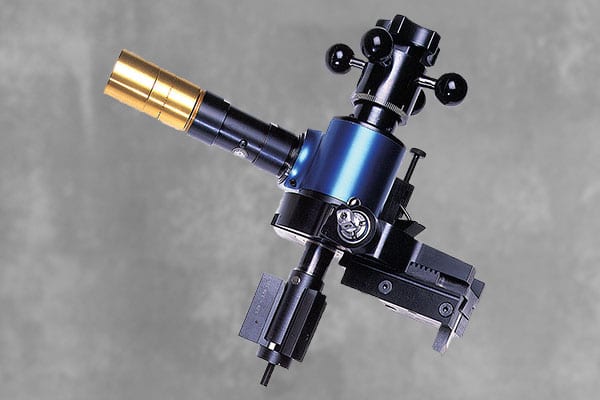

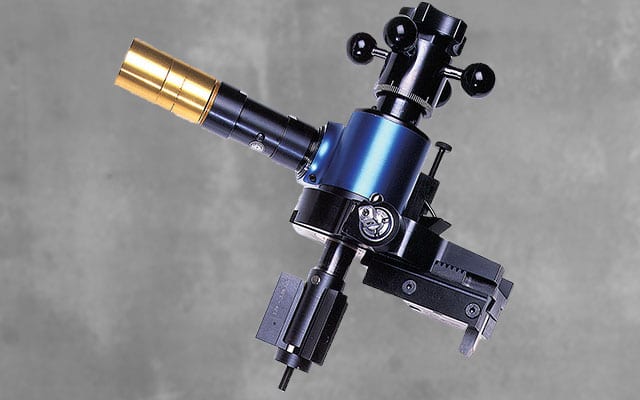

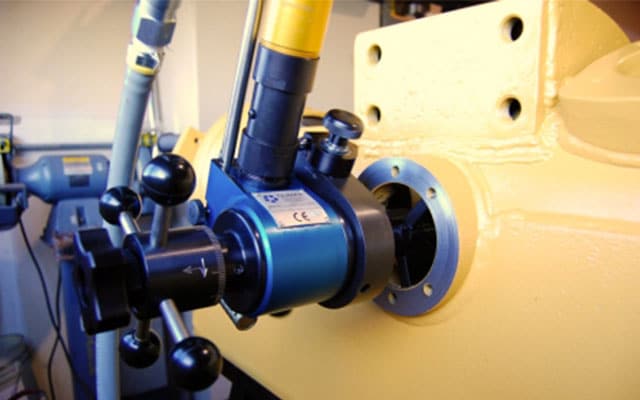

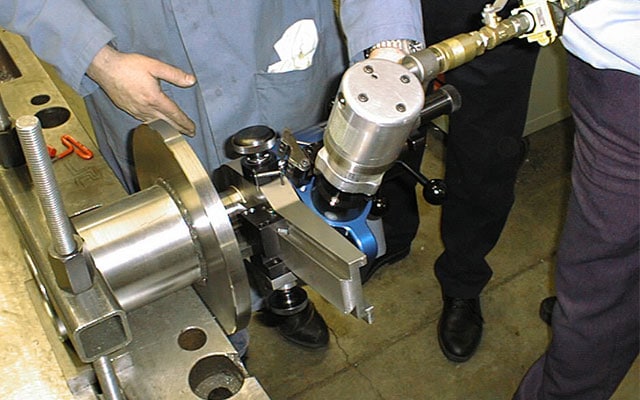

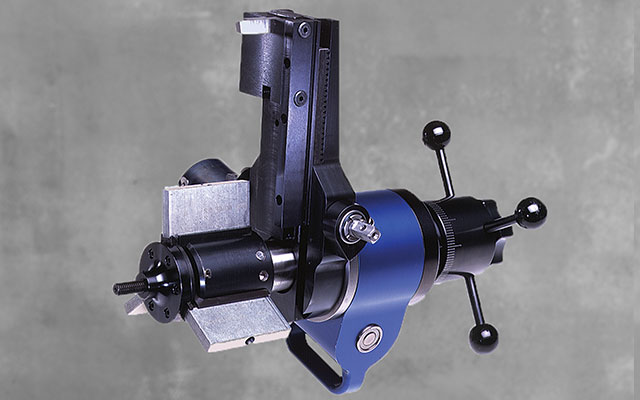

Compact and Versatile

Patented, low profile machine is one of the most compact on the market today.

Lightweight, weighing only 35 lbs (15.9 kg).

Machine raised and flat flanges.

Bi-directional feed.

Optional beveling head connects with “Quick-Lock” system, making changeover quick & easy.

Quality Components

Pneumatic motor comes complete with filter, lubricator and flow control.

Compact, low-profile drive system engineered for superior power to weight ratio.

Features rugged main body, heavy-duty bearings, sealed lubrication, and rigid mounting system.

Cost Effective

Cuts costs in four ways:
– Reduces downtime
– Eliminates off-site machining costs
– Eliminates leak sealing procedures
– Reduces stock of replacement flange

Recoup the cost of a CLIMAX Flange Facer in the first few flange facing jobs.

Simple, Safe, Accurate Flange Facing

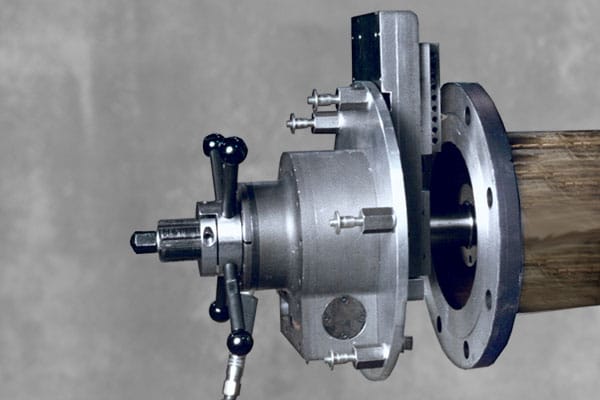

The H&S TOOL Model MFTF Flange Facer is a versatile flange facer designed for flanges ranging from  4.25 inch ID to 16.25 inch OD (19.1 – 412.8 mm). The MFTF is a reliable pipe machine tool with a premium flange facing conversion kit. Powered by reliable pneumatic or electric motors to accurately meet your job site or shop requirements.

The Model MFTF is portable, making it ideal for use in the field. Setup and operation are easily handled by a single worker.

Kits include everything necessary to convert your beveling tool with illustrated instructions.

Standard wedge plates can be used for internal locking or precision elbow mandrels are available. The mandrels are designed to mount in short-radius elbows.

The minimum straight depth to mount the model MFTF is 1.25 inch (31.8 mm).

Centering and squaring devices make accurate machining of gasket surfaces and/or bolt patterns simple and safe.

Compact and Versatile

Low profile machine is one of the most compact on the market today.

Lightweight, weighing only 58 lbs (26.3 kg).

Modular design and versatile setup allows the chuck and main body to be set up separately before placement in the bore.

Machine raised and flat flanges.

Bi-directional feed.

Feed is reversible and infinitely variable for a surface finish of 63 – 500 RMS.

Optional beveling head connects with “Quick-Lock” system, making changeover quick & easy.

Powerful, Quality Components

1.45 Hp (1.08 kW) motor allows typical material removal rate of 1 cubic inch (16.4 cm3) per minute.

Pneumatic motor comes complete with filter, lubricator, and flow control.

Features rugged main body, heavy-duty bearings, sealed lubrication, and rigid mounting system.

Cost Effective

Cuts costs in four ways:
– Reduces downtime.
– Eliminates off-site machining costs.
– Eliminates leak sealing procedures.
– Reduces stock of replacement flanges.

Recoup the cost of a CLIMAX Flange Facer in the first few flange facing jobs.

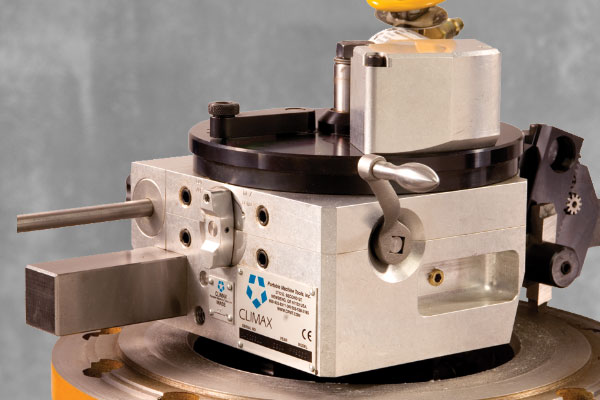

Quick and Easy Setup & Removal

Separate mounting chuck.

All centering and leveling is done on the chuck.

Loosen one bolt and machine can be removed from the chuck without disturbing alignment or calibration.

Lightweight

Body of machine weighs only 60 lbs (27.2 kg).

Smallest mounting chuck weighs about 5 lbs (2.2 kg).

Low Profile

Right angle motor mount.

Machine extends only 7.6 inches (193.0 mm) above flange.

Safe and Quiet Operation

Stationary feed rate selector.

Machine is controlled without touching any moving parts.

Exhaust air is routed through body of machine for increased muffling.

Simplified Operation

Single selector switch for bidirectional radial feed or vertical down-feed.

One wrench size for clamping jaws and body draw bolt.

Cuts Chamfers and Grooves

Compound tool head and down-feed for cutting angles and grooves.

POWERFUL, PRECISE MACHINING PERFORMANCE

Heavy-duty machining arms provide rigid performance and reliable results, ensuring high-quality cutting performance throughout the full range of the machine.

2.4 HP pneumatic motor provides more power and speed resulting in higher metal removal rates to get the job done fast.

ISO 9001 certified manufacturing ensures all CLIMAX products are manufactured to the highest quality standards.

VERSATILITY

Interchangeable machining arms are quick and easy to replace allowing for work in confined spaces or unique environments without having to buy a completely new machine.

Extended machining range, from 5.7 – 40 inches (144.8 – 1016 mm) provides more flexibility – just one machine for a range of applications that typically requires two.

Variable axial and radial feed rate control allows operators to easily adjust and set the feed rate of the cutting tool for consistent performance.

Tool head and tool bit rotate 360˚, which allows for machining and positioning at an angle. This provides flexibility to create a variety of cuts including chamfers, o-ring grooves, RTJ grooves, lens rings and other angular surfaces.

Cutting tools available upon request eliminates outsourcing. Tool holder accepts up to 0.5 inches (12.7 mm) square shank tooling for use with HSS or carbide.

Adjustable chucking system and quick-connect chuck feet allow for quick and easy setup.

Machining and counterweight arms can both be adjusted for the desired swing clearance and machining range. The counterweight can be adjusted easily to achieve near-perfect rotational balance.

Extensive operating manual contains easy to follow tips and includes step-by-step setup instructions for flange facing operations.

SAFETY

Auto-feed system keeps operators hands safe from moving parts and keeps the job running smoothing.

Low-pressure safety interlock system prevents unintended re-starts after the loss of supplied air pressure.

E-stop for quick stops & controlled re-starts.

Modular components are lightweight, easy-to-use, and easy-to-transport reducing the potential for worker fatigue, the number one source of accidents on many work sites. The FF5300 Flange Facer is 45% lighter than similar flange facers on the market today.

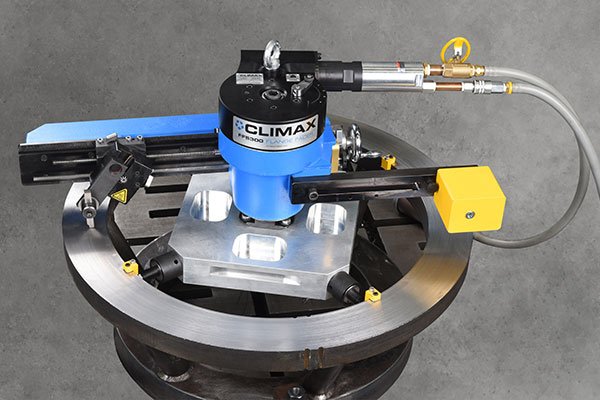

CE certified and available worldwide! All FF5300 Flange Facers are available for sale worldwide, including in the European Union and other locations where CE certification is required.

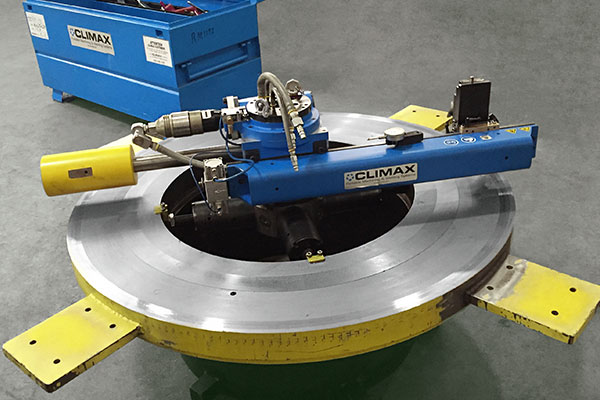

IMPROVED EFFICIENCY AND OPERATIONAL FLEXIBILITY

Extended machining range, from 12 – 60 inches (304 – 1524 mm) provides more flexibility – one machine for many applications.

Varible feed rate control allows operators to easily adjust the feed rate of the cutting tool.

ID, OD, or surface-mount configurations are available for a variety of machining applications, with a quick and easy change over.

Chain-clamp assembly securely clamps OD-mount configurations to eliminate the need to weld for mounting.

Tool head and tool bit rotate 360˚, which allows for machining and positioning at an angle. This provides flexibility to create a variety of cuts including chamfers, O-Ring grooves, lens rings and other angular surfaces.

Back-facing attachment option provides even more flexibility in machining operations for heat exchanger tube sheets and other applications.

Modular components and overall lighter weight make setup, transport and storage quick and easy.

Hydraulic or pneumatic drive options allow flexibility for a variety of working conditions.

RUGGED DESIGN FOR POWERFUL, PRECISE MACHINING PERFORMANCE

Heavy-duty bearings provide rigid performance and reliable results, even over bolt-hole patterns.

Chucking system with leveling feet allows for quick and easy setup.

Modular chuck can be mounted separate from the machine body, makes accurate setup quick & easy.

The worm gear drive system runs smoothly and provides low backlash even with interrupted cuts. High-torque power allows higher metal removal rates.

REDUCING OPERATOR RISK

Remote on/off control of the feed system keeps operators hands away from moving parts.

Multiple lifting points for lifting in all orientations simplify balancing and rigging challenges for easy machine positioning.

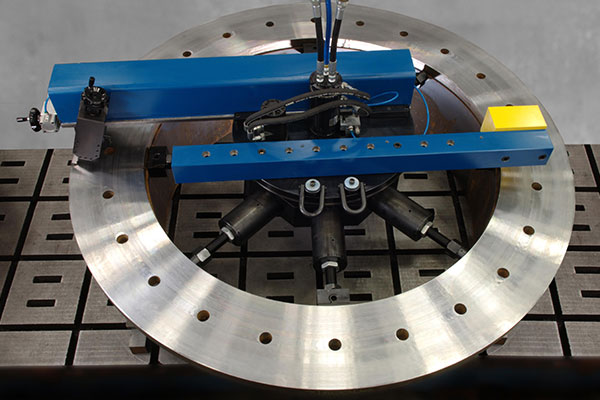

Rugged Machine Design

Large, heavy-duty construction-grade bearings provide powerful, rigid performance throughout the entire machine facing range, even machining over bolt hole patterns.

Oversized ring gear accommodates extremely high torque levels for challenging flange repair applications, and these machines are able to generate a phonographic finish.

Flexible and Versatile

Both radial and axial feed is achieved with a pneumatic feedbox. Manual feeding for rapid positioning is also possible.

Feed rate is adjusted remotely at the pneumatic conditioning unit, providing the ultimate in operator safety and the flexibility for feed rate adjustments even during machining operations.

Infinitely variable feed rates from 0.002-0.035 in. (0.05 – 0.89 mm)/rev provides operational flexibility.

Reversible feed box can be mounted to provide either radial or axial feed.

Turning and counterweight arms can both be adjusted for the desired swing clearance and machining range.

Pneumatic & hydraulic drive options available.

Chucking system can be removed to allow the flange facer to be face-mounted.

Tool head can be rotated a full 360˚ providing the ability to create a variety of chamfers, O-Ring grooves, lens rings and other angular surfaces as needed.

Can be mounted ID or surface-mounted. Call for custom OD mounting options.

Grinding option available for fine finish work.

Back facing attachment available for heat exchanger repair.

Quick and Easy Setup

Modular design allows many of the machine components to be removed to facilitate easier setup and storage.

Unique chucking system minimizes parts to greatly simplify machine setup and tear down.

Quick-adjust leveling feet make setup quick and easy.

Rugged Machine Design

Large, heavy duty construction-grade bearings provide powerful, rigid performance throughout the entire machine facing range, even machining over bolt hole patterns.

Oversized ring gear accommodates extremely high torque levels for challenging flange repair applications, and these machines are able to generate a phonographic finish.

Flexible and Versatile

Both radial and axial feed is achieved with a pneumatic feedbox. Manual feeding for rapid positioning is also possible.

Feed rate is adjusted remotely at the pneumatic conditioning unit, providing the ultimate in operator safety and the flexibility for feed rate adjustments even during machining operations.

Infinitely variable feed rates from 0.002 – 0.035 inches (0.0508 – 0.889 mm)/rev provides operational flexibility.

Reversible feed box can be mounted to provide either radial or axial feed.

Turning and counterweight arms can both be adjusted for the desired swing clearance and machining range.

Tool head can be rotated a full 360˚ providing the ability to create a variety of chamfers, O-Ring grooves, lens rings and other angular surfaces as needed.

Pneumatic & hydraulic drive options available.

Chucking system can be removed to allow the flange facer to be face-mounted.

Can be mounted both OD and ID or surface-mounted.

Milling option available with precision down-feed ball screw.

Back facing attachment available for heat exchanger repair.

Quick and Easy Setup

Modular design allows many of the machine components to be removed to facilitate easier setup and storage.

Unique chucking system minimizes parts to greatly simplify machine setup and tear down.

Quick-adjust leveling feet make setup quick and easy.
