OD MOUNT FLANGE FACERS

With various models of OD mount flange facers to reface, mill, bevel, square, counterbore, or cut end prep configura­tions for welding, CLIMAX offers a wide variety of rugged and innovative portable flange facers, for 0 to 120 inch (0 to 3050 mm) diameters, for OD mounting, and several of our machines can be configured for facing, milling, or both! For easy setup, larger units can be installed with a separate mount or chuck to which the facer body is installed.

With 29 models to choose from, CLIMAX flange facers can tackle an unrivaled range of applications from 0 to 199 inches (0 to 5054 mm) – VIEW BROCHURE.

FF1000 OD MOUNT FLANGE FACER

This OD-mount machine features a low-profile power module and centering/leveling plate for fast and easy setup. Mounting bell with wide-access windows simplifies gearbox adjustments. Facing diameters range from 0 to 12 inches (0 to 304.8 mm).

Facing Diameter:

0 – 12 inches (0 – 304.8 mm)

Feed Rate:

0 – 0.035 in./rev (0 – 0.889 mm/rev)

OD Mounting Diameter:

2 – 12 inches (50.8 – 304.8 mm)

Power Option:

Pneumatic

Two Mounting Bell Sizes

8 inch module mounts on flanges 4 to 8 inches (101.6-203.2 mm) in diameter.

12 inch module mounts on flanges 8 to 12 inches (203.2 to 304.8 mm) in diameter.

Two Power Modules

Use with either mounting bell. Variable radial feed rate.Manual depth adjustment / longitudinal feed.

100 rpm with a 15:1 gear reduction, 1-inch (25.4 mm) stroke, 105 ft•lb (142.7 N•m) of torque.

200 rpm with a 7.5:1 gear reduction, 1-inch (25.4 mm) stroke, 52.5 ft•lb (71.4 N•m) of torque

Optional Power Feed Module

Some applications require a remotely operated power axial feed. This 115V unit attaches to the power module. Axial feed rates are available from 0.04 to 1.6 inches/minute (1.0 to 40.6 mm/min.).

Two Facing Heads

8 inch module faces 0 to 8 inches (0 to 203.2 mm) in diameter.

12 inch module faces 0 to 12 inches (0 to 304.8 mm) in diameter.

Optional Small Flange Adapter Plate

Attaches to the bottom of the 8 inch (203.2 mm) diameter mounting bell to allow re-facing flanges from 2 to 4 inches (50.8 to 101.6 mm) in diameter.

Unit comes complete with setup fingers to accommodate smaller diameter flanges.

Quick and Easy Setup

An experienced operator can set up the FF1000 Portable Flange Facer in less than half an hour.

Once you are familiar with the machine, re-facing 2 to 3 standard flanges per hour is typical (depending on the size and type of flanges, access and general working conditions).

Literature

FF1000 Flange Facer

Accessories

Operating Manual

FF1000 Operating Manual

FF1200 OD MOUNT FLANGE FACER

This safe, versatile, and rugged OD Mount Flange Facer can machine flanges up to 12.5 inches (317.5 mm) in diameter without any attachments. Designed for the rugged challenges of the oil, gas and chemical industry, this machine has the versatility to machine seven different flange types, including RTJ and compact flanges. With feed controls located remotely for “hands-free machining,” the FF1200 sets a new standard in operator safety while delivering up to 30% time savings on flange facing jobs.

Facing Diameter:

0 – 12.5 inches (0 – 317.5 mm)

Feed Rate:

0 – 0.035 in./rev (0 – 0.889 mm/rev)

OD Mounting Diameter:

2 – 14.1 inches (50.8 – 358.1 mm)

Power Option:

Pneumatic

Industry-Changing Safety

Feed control on the outside of the machine – no more reaching in!

E-stop for quick stops & controlled re-starts

Low pressure drop-out prevent unintended re-starts after loss of supplied air pressure

CE Certified

Flexible and Versatile

1 machine for 7 flange types, no attachments needed
– Flat face
– Raised face
– Ring type joints (RTJ)
– Tongue & groove
– Lens ring
– Grayloc (hub profile)
– Compact flanges

Select from 3 models sized to machine flanges up to 12.5, 24.5 or 36.5 inches (317.5, 622.3 or 927.1 mm) in diameter

Automatic & variable feed come standard on both radial and axial feeds for up to 30% time savings!
… no reaching in means higher RPM machining
… adjust feed rate while machining – no need to stop, change direction, or replace parts
… start & stop feed while machining to machine to a shoulder
… easy machining of various types of materials
… a better surface finish

Tool head and tool bit rotate independently, to any angle

Tool head presets at 0°, 23°, and -23°

High Quality, Robust Design

No broken shear pin in an event of a crash – just reset, and keep working

Robust chucking mechanism and unique bearing design provide superior rigidity and machining performance

Smooth-running rotational drive produces a high quality finish

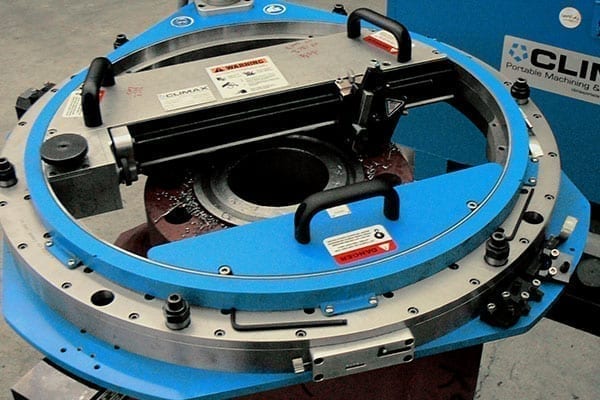

FF2400 OD MOUNT FLANGE FACER

Delivering superior performance and safety, this OD Mount Flange Facer can machine flanges up to 24.4 inches (619.8 mm) in diameter without any attachments. Designed to perform in the harshest of environments, this machine can handle flat face, raised face, RTJ, tongue and groove, lens ring, Grayloc®, and compact flanges. Like the other CLIMAX OD Mount Flange Facers, this machine delivers world-class operator safety with remote feed controls and a low-pressure safety interlock system that prevents unintended re-starts if air pressure is interrupted.

Facing Diameter:

0 – 24.5 inches (0 – 622.3 mm)

Feed Rate:

0 – 0.035 in./rev (0 – 0.889 mm/rev)

OD Mounting Diameter:

8 – 26 inches (203.2 – 660.4 mm)

Power Option:

Pneumatic

Industry-Changing Safety

Feed control on the outside of the machine – no more reaching in!

E-stop for quick stops & controlled re-starts

Low pressure drop-out prevent unintended re-starts after loss of supplied air pressure

CE Certified

Flexible and Versatile

1 machine for 7 flange types, no attachments needed
– Flat face
– Raised face
– Ring type joints (RTJ)
– Tongue & groove
– Lens ring
– Grayloc (hub profile)
– Compact flanges

Select from 3 models sized to machine flanges up to 12.5, 24.5 or 36.5 inches (317.5, 622.3 or 927.1 mm) in diameter

Automatic & variable feed come standard on both radial and axial feeds for up to 30% time savings!
… no reaching in means higher RPM machining
… adjust feed rate while machining – no need to stop, change direction, or replace parts
… start & stop feed while machining to machine to a shoulder
… easy machining of various types of materials
… a better surface finish

Tool head and tool bit rotate independently, to any angle

Tool head presets at 0°, 23°, and -23°

High Quality, Robust Design

No broken shear pin in an event of a crash – just reset, and keep working

Robust chucking mechanism and unique bearing design provide superior rigidity and machining performance

Smooth-running rotational drive produces a high quality finish

FF3600 OD MOUNT FLANGE FACER

Unrivaled in capability for its size, this robust OD Mount Flange Facer can machine flanges up to 36.4 inches (924.6 mm) in diameter without any attachments. Like the other CLIMAX OD Mount Flange Facers, The FF3600 OD Mount Flange Facer machine comes standard with infinitely variable feed rates that can be adjusted while the machine is running, maximizing the user’s ability to perform even in the most challenging environments within the oil and gas, power generation, and shipbuilding & repair industries.

Facing Diameter:

0 – 36.5 inches (0 – 927.1 mm)

Feed Rate:

0 – 0.035 in./rev (0 – 0.889 mm/rev)

OD Mounting Diameter:

20 – 38 inches (508 – 965.2 mm)

Power Option:

Pneumatic

Industry-Changing Safety

Feed control on the outside of the machine – no more reaching in!

E-stop for quick stops & controlled re-starts

Low pressure drop-out prevent unintended re-starts after loss of supplied air pressure

CE Certified

Flexible and Versatile

1 machine for 7 flange types, no attachments needed
– Flat face
– Raised face
– Ring type joints (RTJ)
– Tongue & groove
– Lens ring
– Grayloc (hub profile)
– Compact flanges

Select from 3 models sized to machine flanges up to 12.5, 24.5 or 36.5 inches (317.5, 622.3 or 927.1 mm) in diameter

Automatic & variable feed come standard on both radial and axial feeds for up to 30% time savings!
… no reaching in means higher RPM machining
… adjust feed rate while machining – no need to stop, change direction, or replace parts
… start & stop feed while machining to machine to a shoulder
… easy machining of various types of materials
… a better surface finish

Tool head and tool bit rotate independently, to any angle

Tool head presets at 0°, 23°, and -23°

High Quality, Robust Design

No broken shear pin in an event of a crash – just reset, and keep working

Robust chucking mechanism and unique bearing design provide superior rigidity and machining performance

Smooth-running rotational drive produces a high quality finish

Accessories

SPEED FACER™ ODF30 – ODF120

The H&S TOOL SPEED FACER™ family are designed with safety and productivity-enhancing features that separate this line of machines from the competition. The remote feed control and auto-feed system allows for hands-free machining, keeping operators hands away from moving parts. The customized setup fingers and leveling feet allow the operator to easily set up the machine making it possible to go from crate-to-cut in 15 minutes or less. With infinitely variable feed rates and the ability to rotate the tool head and bits 360°, the SPEED FACER™ family has increased flexibility for higher metal removal, variable surface finishes, and the ability to create a variety of cuts.

Model Mounting range Mounting range with feet extension Facing diameter range: Motor option:
ODF30 19.2 – 30.5 in. (488 – 775 mm) 9.2 – 30.5 in. (234 – 775 mm) 0 – 30.5 in. (0 – 775 mm) Pneumatic or Hydraulic – Belt Drive
ODF40 29.2 – 40.5 in. (742 – 1029 mm) 19.2 – 40.5 in. (488 – 1029 mm) 0 – 40.5 in. (0 – 1029 mm) Pneumatic or Hydraulic – Belt Drive
ODF50 39.2 – 50.5 in. (996 – 1283 mm) 29.2 – 50.5 in. (742 – 1283 mm) 0 – 50.5 in. (0 – 1283 mm) Pneumatic or Hydraulic – Belt Drive
ODF60 49.2 – 60.5 in. (1250 – 1537 mm) 39.2 – 60.5 in. (996 – 1537 mm) 0 – 60.5 in. (0 – 1537 mm) Pneumatic or Hydraulic – Belt Drive
ODF70 59.2 – 70.5 in. (1512 – 1791 mm) 49.2 – 70.5 in. (1250 – 1791 mm) 0 – 70.5 in. (0 – 1791 mm) Pneumatic or Hydraulic – Belt Drive
ODF80 69.2 – 80.5 in. (1757 – 2044 mm) 59.2 – 80.5 in. (1503 – 2044 mm) 0 – 80.5 in. (0 – 2044 mm) Pneumatic or Hydraulic – Belt Drive
ODF90 79.2 – 90.5 in. (2011 – 2298 mm) 69.2 – 90.5 in. (1757 – 2298 mm) 0 – 90.5 in. (0 – 2298 mm) Pneumatic or Hydraulic – Belt Drive
ODF100 89.2 – 100.5 in. (2265 – 2552 mm) 79.2 – 100.5 in. (2011 – 2552 mm) 0 – 100.5 in. (0 – 2552 mm) Pneumatic or Hydraulic – Belt Drive
ODF110 99.2 – 110.5 in. (2519 – 2806 mm) 89.2 – 110.5 in. (2265 – 2806 mm) 0 – 110.5 in. (0 – 2806 mm) Pneumatic or Hydraulic – Belt Drive
ODF120 109.2 – 120.5 in. (2773 – 3060 mm) 99.2 – 120.5 in. (2519 – 3060 mm) 0 – 120.5 in. (0 – 3060 mm) Pneumatic or Hydraulic – Belt Drive

POWERFUL PRECISE MACHINING PERFORMANCE
Up to 3 hp pneumatic motor provides more power and speed resulting in higher metal removal rates to get the job done fast.

Optimized drive reduction provides the speed range required to use carbide or HSS tooling, for added flexibility and performance.

Infinitely variable feed rates from 0.001-0.032 inch/rev (0.025 – 0.813 mm/rev) allows operational flexibility for higher metal removal and variable surface finish requirements.

Multiple feed trippers to actuate the adjustable feed unit. This allows aggressive feed rates for maximum metal removal as needed.

VERSATILITY AND EASE OF USE
Select from 10 models sized to machine flanges up to 30.5, 40.5, 50.5, 60.5, 70.5, 80.5, 90.5, 100.5, 110.5, or 120.5 inches (775, 1029, 1283, 1537, 1791, 2045, 2299, 2553, 2807, or 3061 mm) in diameter.

Tool head and tool bit rotate 360° independently to any angle allowing optimal tool bit positioning and flexibility to create a variety of cuts including chamfers, o-ring grooves, square shoulders, and other angled surfaces.

Back-facing attachment option provides even more flexibility in machining operations where there are bridge obstructions or when machining flanges on the back side of the pipe flange.

Removable feed trippers allow for multiple mounting positions maximizing ability to avoid obstructions.

Setup fingers and leveling feet allow for quick and easy setup and alignment of the machine reducing crane time.

Reversible pneumatic motor can be installed from either the top or bottom of the machine depending on obstructions or operating mode.

Custom-built crate allows for expanded shipping options and reduces exposure to inclement weather and damage on-site or in transit.

Cutting tools available upon request eliminate outsourcing. Tool holder can accept up to 0.75 inches (19.1 mm) tooling.

SAFETY
Auto-feed system keeps operators hands safe from moving parts and keeps the job running smoothly.

Bearing guard keeps chips and debris out of the bearing and belt drive system protecting the operator from exposed pinch and entanglement hazards.

Low-pressure safety interlock system prevents unintended re-starts after the loss of supplied air pressure.

E-stop for quick stops & controlled re-starts.

CE Certified

FF6300 FLANGE FACER

Performance, versatility, and safety. Delivers high-torque performance to quickly re-surface flanges and repair sealing and bearing surfaces efficiently and cost-effectively. Can be configured in either ID, OD, or surface-mount configurations for a variety of machining applications, with a quick and easy changeover. Facing diameters range from 11.8 to 60 inches (299.7 to 1524.0 mm).

ID Facing Diameter:

11.8 – 60 inches (299.7 – 1524.0 mm)

Milling Diameter:

N/A

ID Mounting Diameter:

11.8 – 57.5 inches (299.7 – 1460.5 mm)

OD Facing Diameter:

8.5 – 60 inches (215.9 – 1524.0 mm)

OD Mounting Diameter:

38.1 – 63.8 inches (967.7 – 1620.5 mm)

Power Option:

Pneumatic or Hydraulic

IMPROVED EFFICIENCY AND OPERATIONAL FLEXIBILITY

Extended machining range, from 12 – 60 inches (304 – 1524 mm) provides more flexibility – one machine for many applications.

Varible feed rate control allows operators to easily adjust the feed rate of the cutting tool.

ID, OD, or surface-mount configurations are available for a variety of machining applications, with a quick and easy change over.

Chain-clamp assembly securely clamps OD-mount configurations to eliminate the need to weld for mounting.

Tool head and tool bit rotate 360˚, which allows for machining and positioning at an angle. This provides flexibility to create a variety of cuts including chamfers, O-Ring grooves, lens rings and other angular surfaces.

Back-facing attachment option provides even more flexibility in machining operations for heat exchanger tube sheets and other applications.

Modular components and overall lighter weight make setup, transport and storage quick and easy.

Hydraulic or pneumatic drive options allow flexibility for a variety of working conditions.

RUGGED DESIGN FOR POWERFUL, PRECISE MACHINING PERFORMANCE

Heavy-duty bearings provide rigid performance and reliable results, even over bolt-hole patterns.

Chucking system with leveling feet allows for quick and easy setup.

Modular chuck can be mounted separate from the machine body, makes accurate setup quick & easy.

The worm gear drive system runs smoothly and provides low backlash even with interrupted cuts. High-torque power allows higher metal removal rates.

REDUCING OPERATOR RISK

Remote on/off control of the feed system keeps operators hands away from moving parts.

Multiple lifting points for lifting in all orientations simplify balancing and rigging challenges for easy machine positioning.

Literature

FF6300 Flange Facer

Accessories

Operating Manual

FF6300 Operating Manual

FF8200 FLANGE FACER

A true workhorse, with the size and muscle to machine large-diameter flange faces. It gives up nothing in accuracy thanks to its rigidity, easy positioning and uniform rotation rates, even when mounted in vertical flanges. Features a tool head that can be rotated a full 360°, infinitely variable feed rates, and remotely adjustable air-powered feedbox so radial and axial feeds can be done quickly and safely. Facing AND milling diameters range from 45 to 120 inches (1143 to 3048 mm).

Facing Diameter:

45 – 120 inches (1143 – 3048 mm)

Milling Diameter:

45 – 120 inches (1143 – 3048 mm)

ID Mounting Diameter:

45 – 120 inches (1143 – 3048 mm)

OD Mounting Diameter:

89.8 – 136.4 inches (2280.9 – 3464.6 mm)

Power Option:

Pneumatic or Hydraulic

Rugged Machine Design

Large, heavy duty construction-grade bearings provide powerful, rigid performance throughout the entire machine facing range, even machining over bolt hole patterns.

Oversized ring gear accommodates extremely high torque levels for challenging flange repair applications, and these machines are able to generate a phonographic finish.

Flexible and Versatile

Both radial and axial feed is achieved with a pneumatic feedbox. Manual feeding for rapid positioning is also possible.

Feed rate is adjusted remotely at the pneumatic conditioning unit, providing the ultimate in operator safety and the flexibility for feed rate adjustments even during machining operations.

Infinitely variable feed rates from 0.002 – 0.035 inches (0.0508 – 0.889 mm)/rev provides operational flexibility.

Reversible feed box can be mounted to provide either radial or axial feed.

Turning and counterweight arms can both be adjusted for the desired swing clearance and machining range.

Tool head can be rotated a full 360˚ providing the ability to create a variety of chamfers, O-Ring grooves, lens rings and other angular surfaces as needed.

Pneumatic & hydraulic drive options available.

Chucking system can be removed to allow the flange facer to be face-mounted.

Can be mounted both OD and ID or surface-mounted.

Milling option available with precision down-feed ball screw.

Back facing attachment available for heat exchanger repair.

Quick and Easy Setup

Modular design allows many of the machine components to be removed to facilitate easier setup and storage.

Unique chucking system minimizes parts to greatly simplify machine setup and tear down.

Quick-adjust leveling feet make setup quick and easy.

Literature

FF8200 Flange Facer

Accessories

Operating Manual

FF8200 Operating Manual
